Electronic Seat Belt Buckle (CA-03950A Series)

Electronic Seat Belt Buckle (CA-03950A Series)
Product Information
✔ Buckle size in 68mm X 47mm. ✔ Material : Steel + Plastic
Available Model Colors
Available Match Colors
Available Model

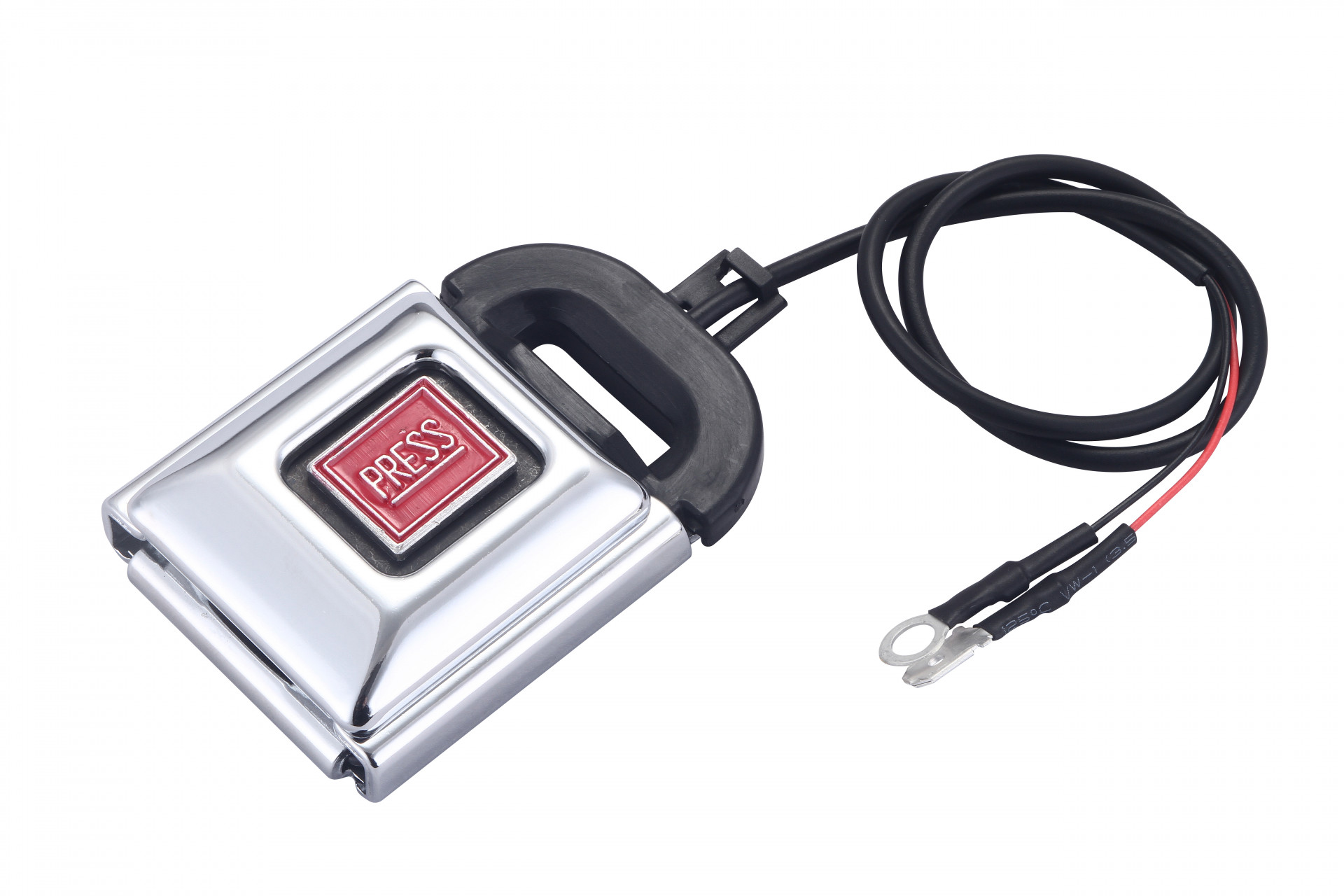

CA-03950A

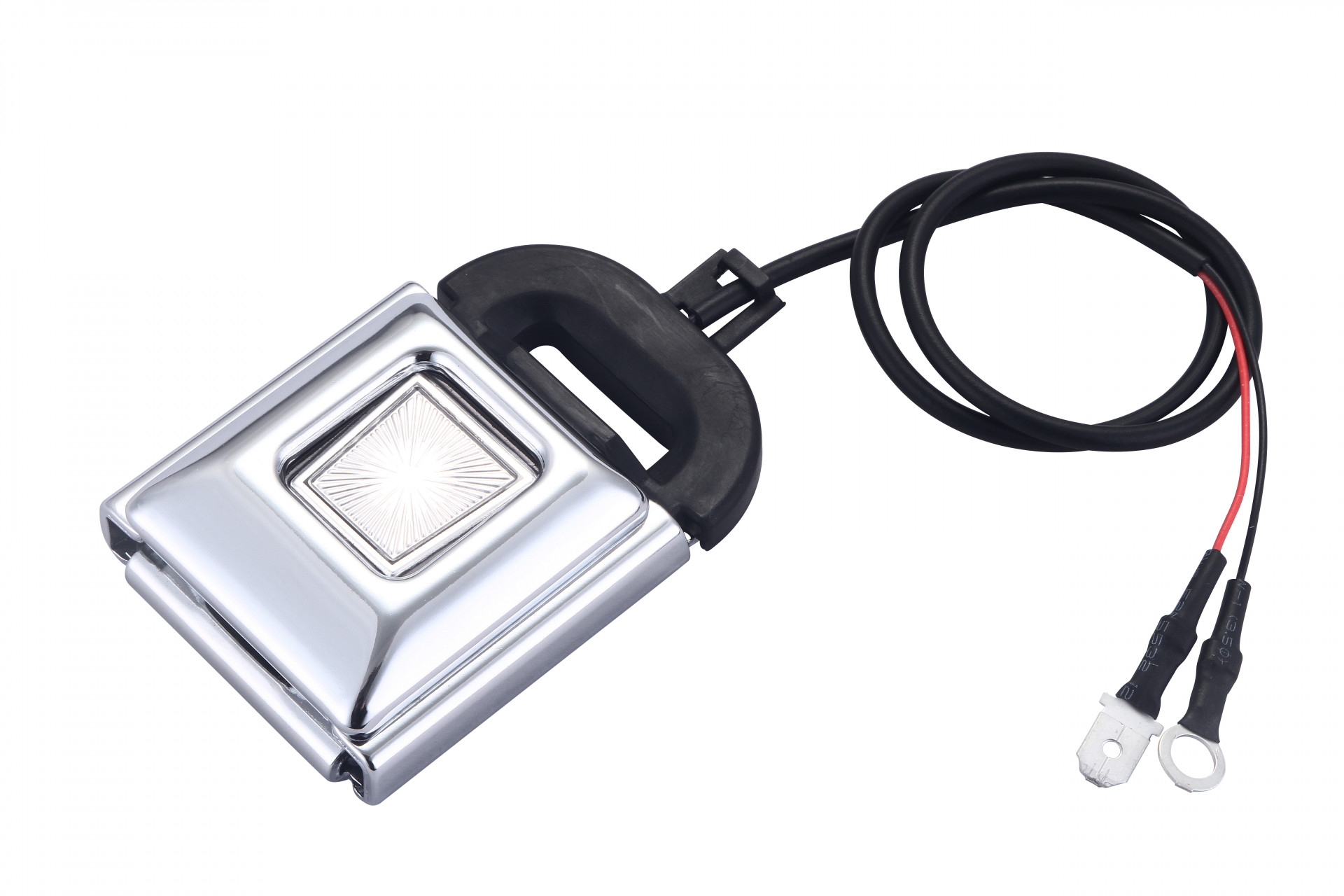

CA-03951A

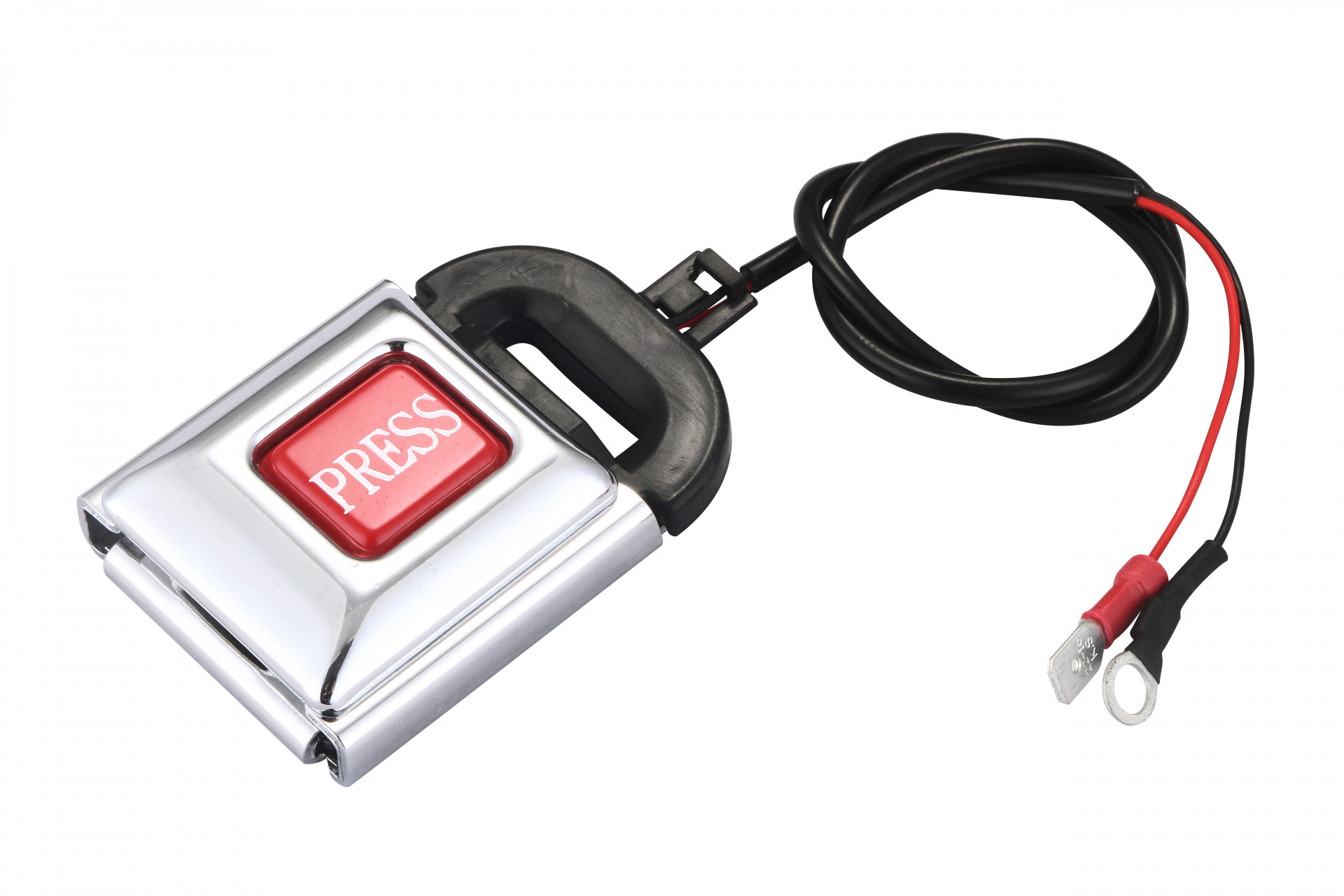

CA-03953A
Available Match

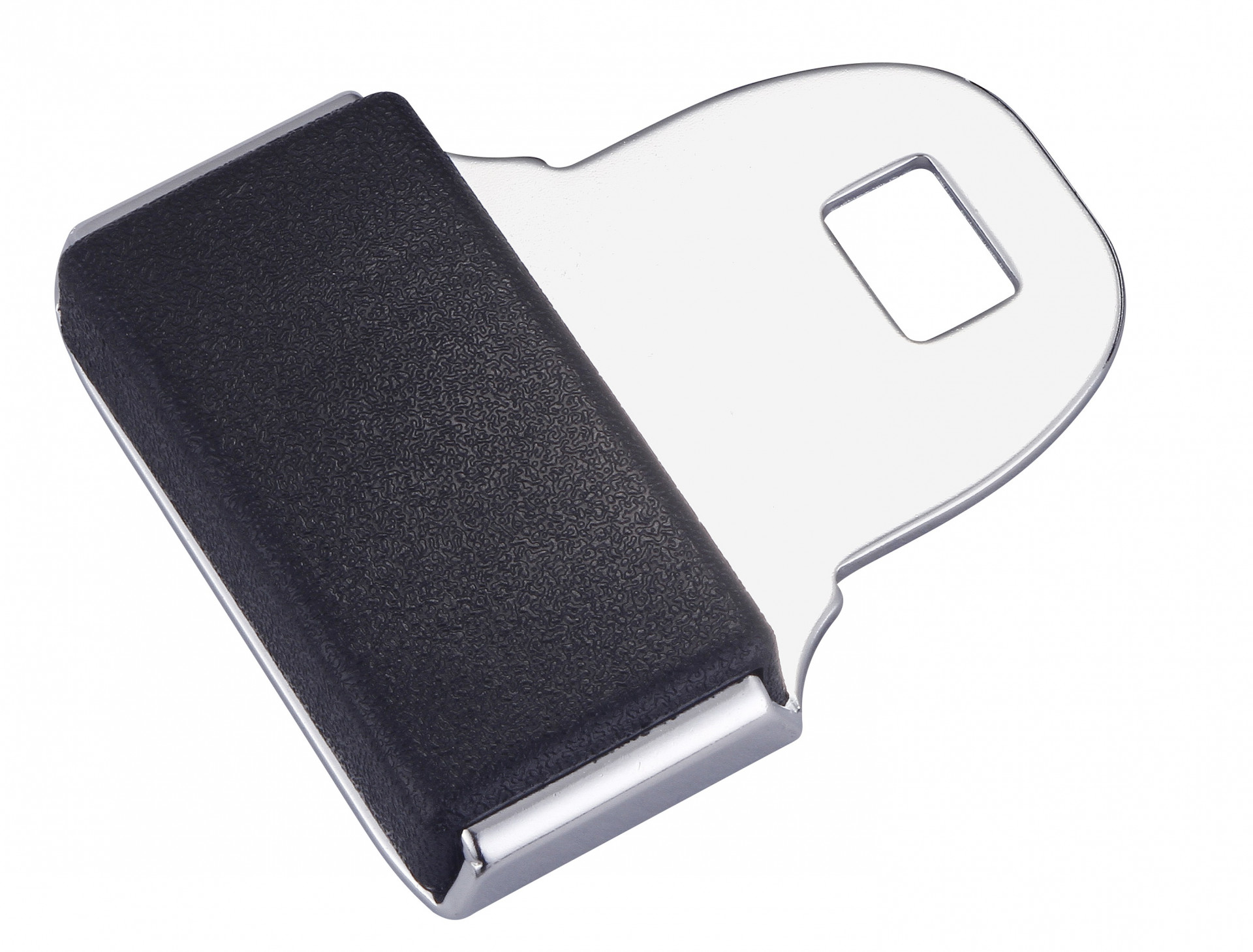

CW-3001

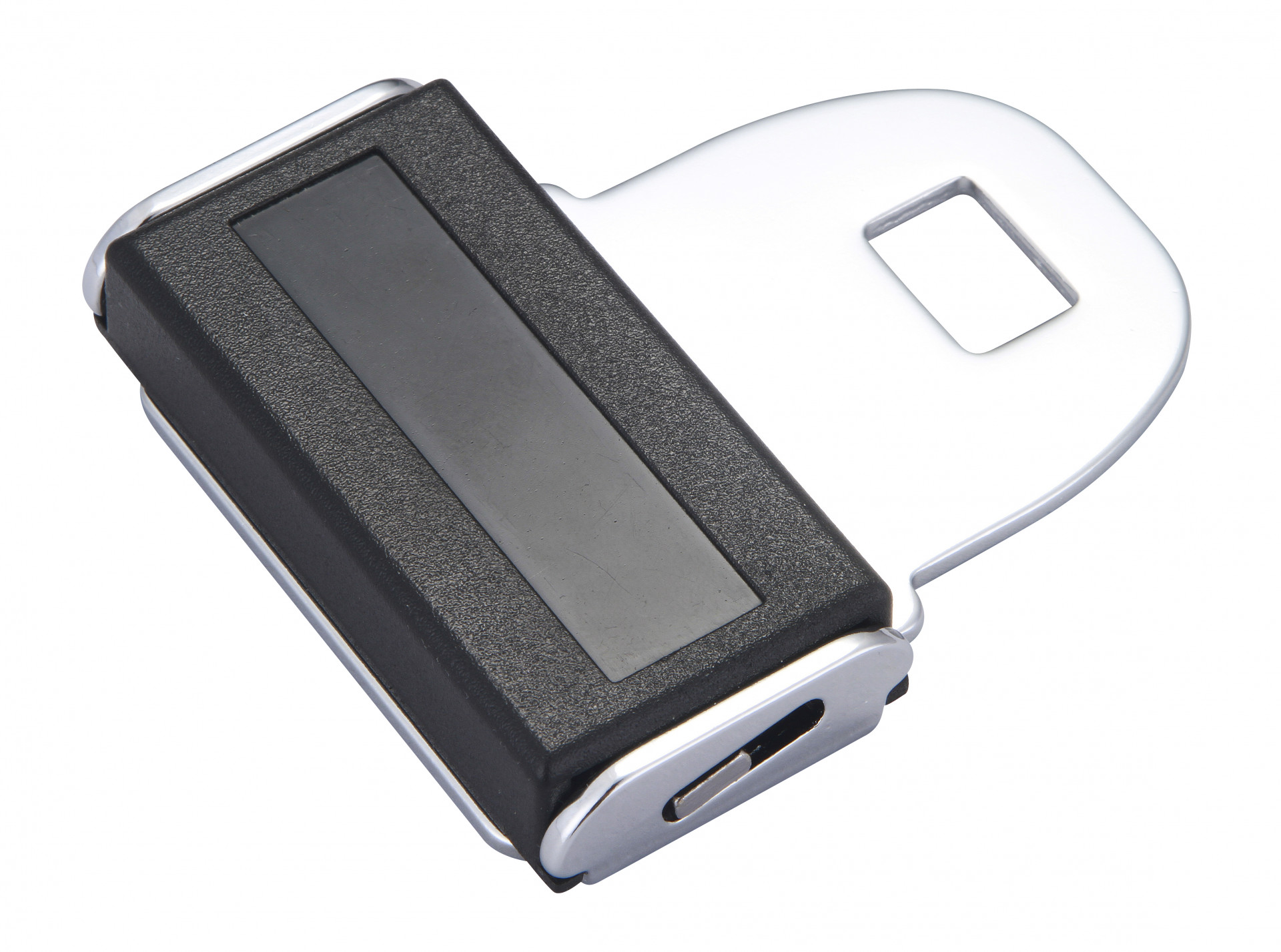

CW-3002

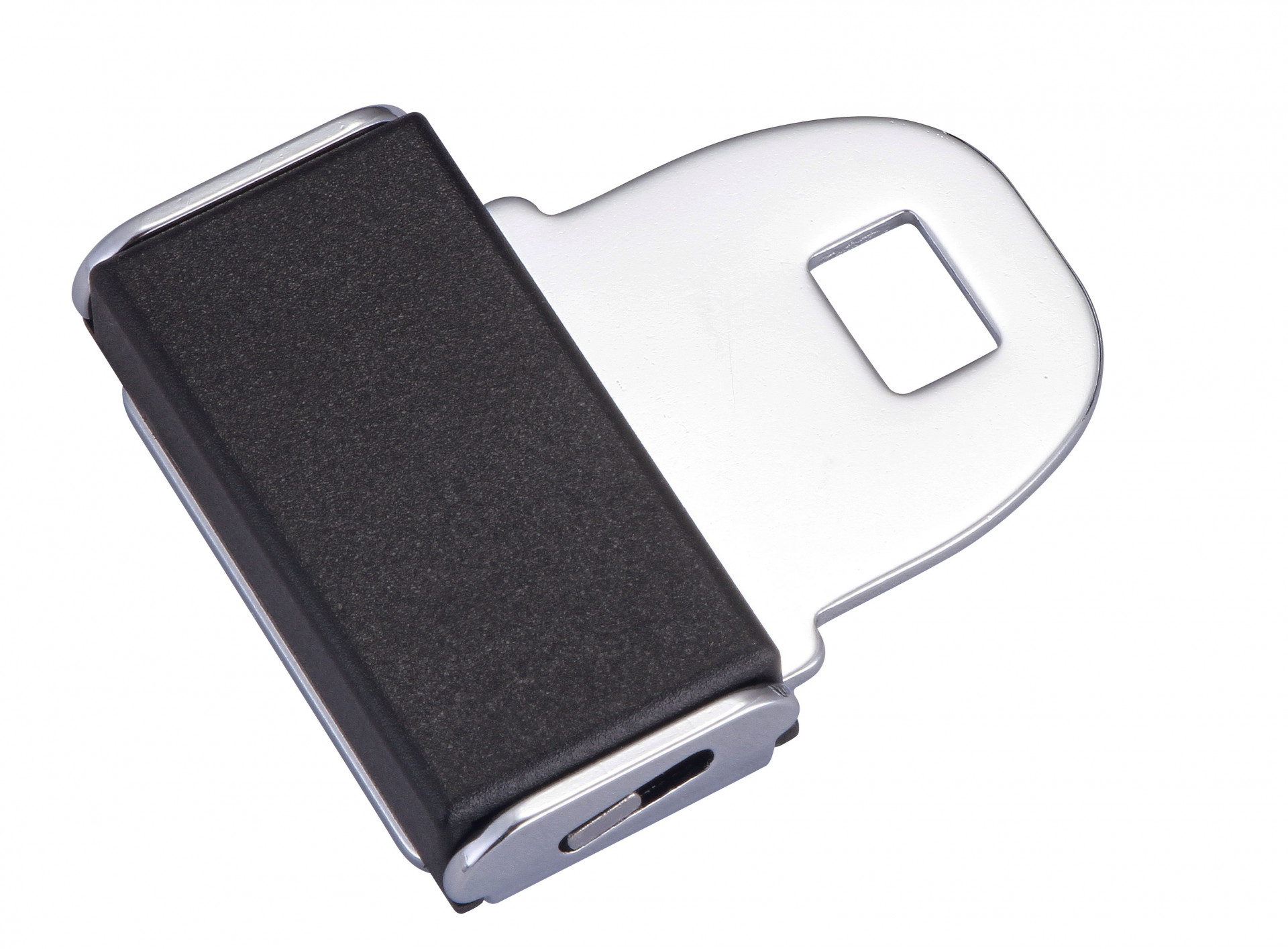

CW-3003

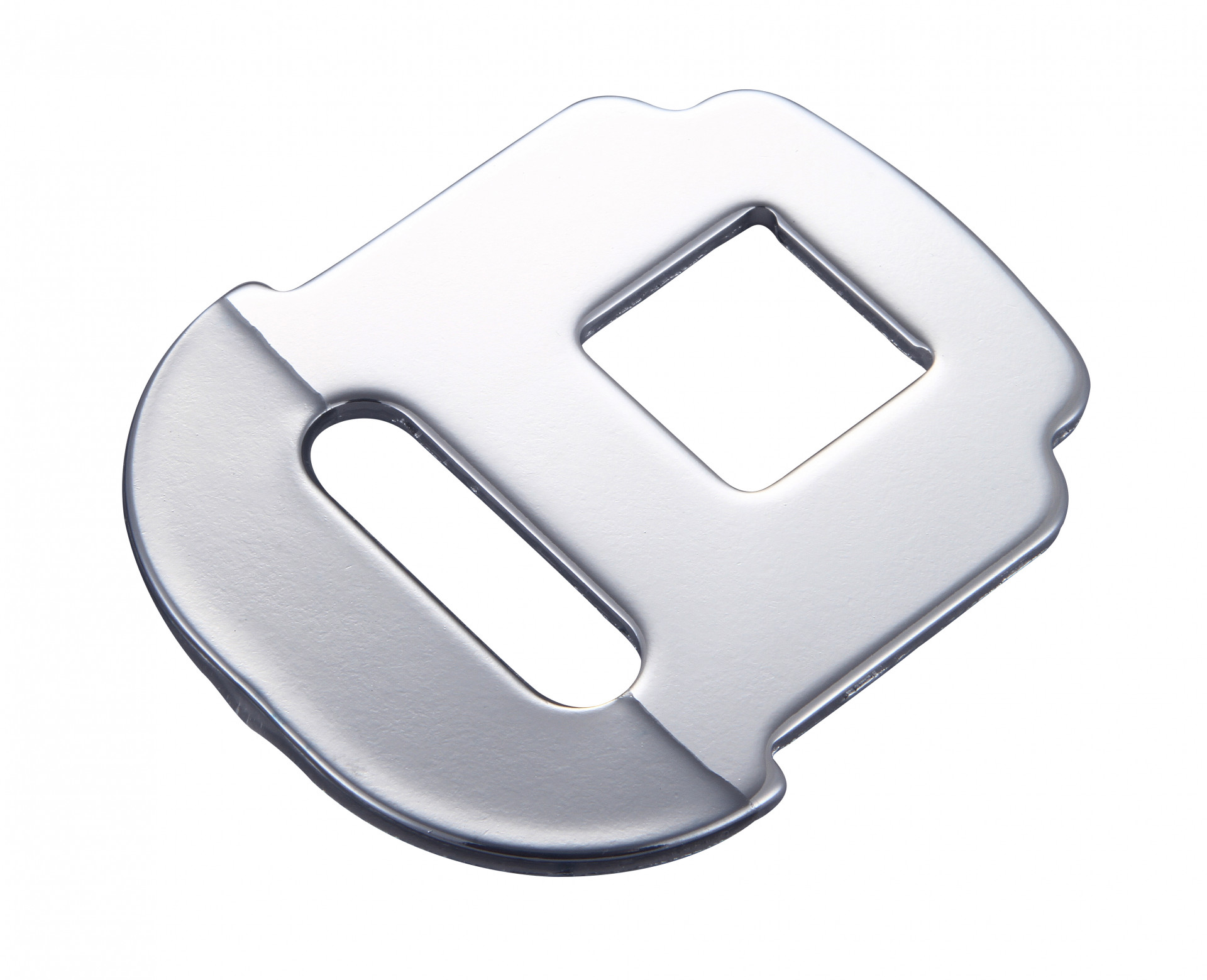

CW-3004

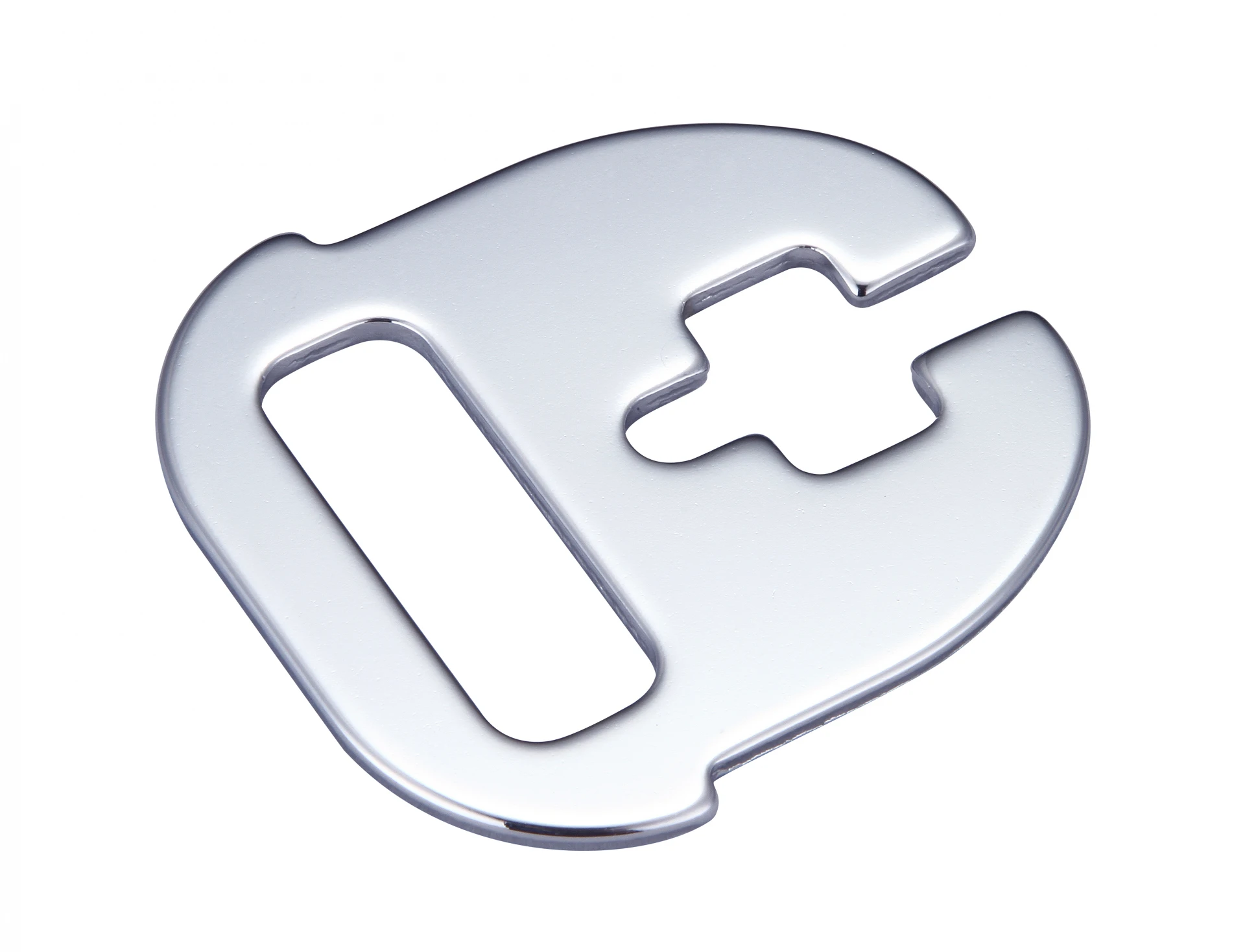

CW-3005A
CW-3007 (1).JPG
CW-3007
CW-3008 (1).JPG
CW-3008
CW-3111
CW-3211 CW-3221
CW-3212 CW-3222

About CA-03950 Electronic Seat Belt Buckle

The CA-03950A Series Electronic Row Safety Buckle is an all-metal design for security and industrial style.

It can be widely used in many occasions that require buckles.

● assistive devices market

● Fire market

● Automotive market

● Use of fasteners with required strength

Female-Buckle Specification

   CA-03950A

   ✔Buckle Dimension:68mm X 46.7mm.
   ✔Webbing hole diameter:25mm
   ✔Material:S50C


  CA-03951A

  ✔Buckle Dimension:68mm X 46.7mm.
  ✔Webbing hole diameter:25mm
  ✔Material:S50C



  CA-03953A

  ✔Buckle Dimension:68mm X 46.7mm.
  ✔Webbing hole diameter:25mm
  ✔Material:S50C



Male-Buckle Specification

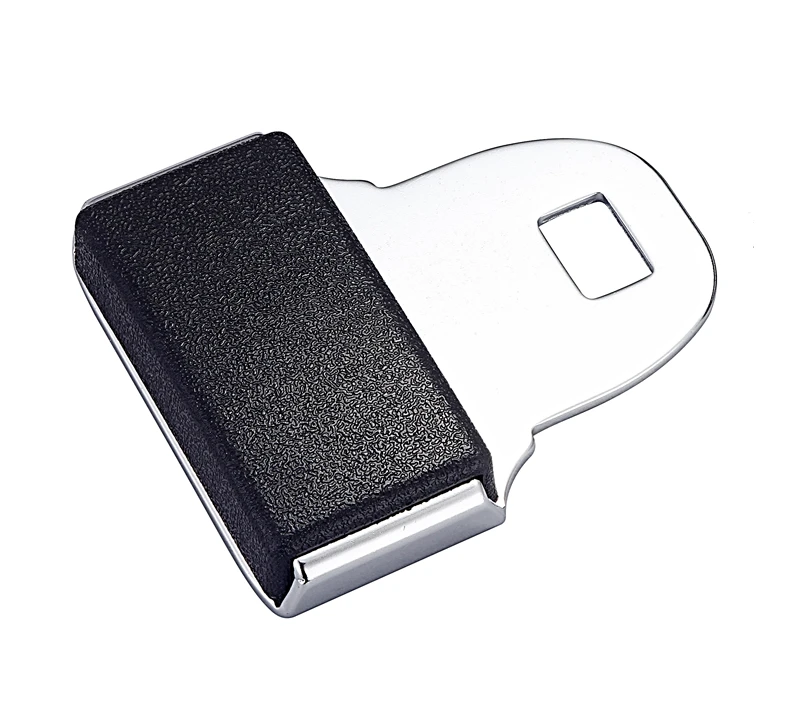

  CW-3001

  ✔Dimension : 74mm x 68.5mm
  ✔Material : S50C + PU
  ✔Webbing hole diameter : 50mm

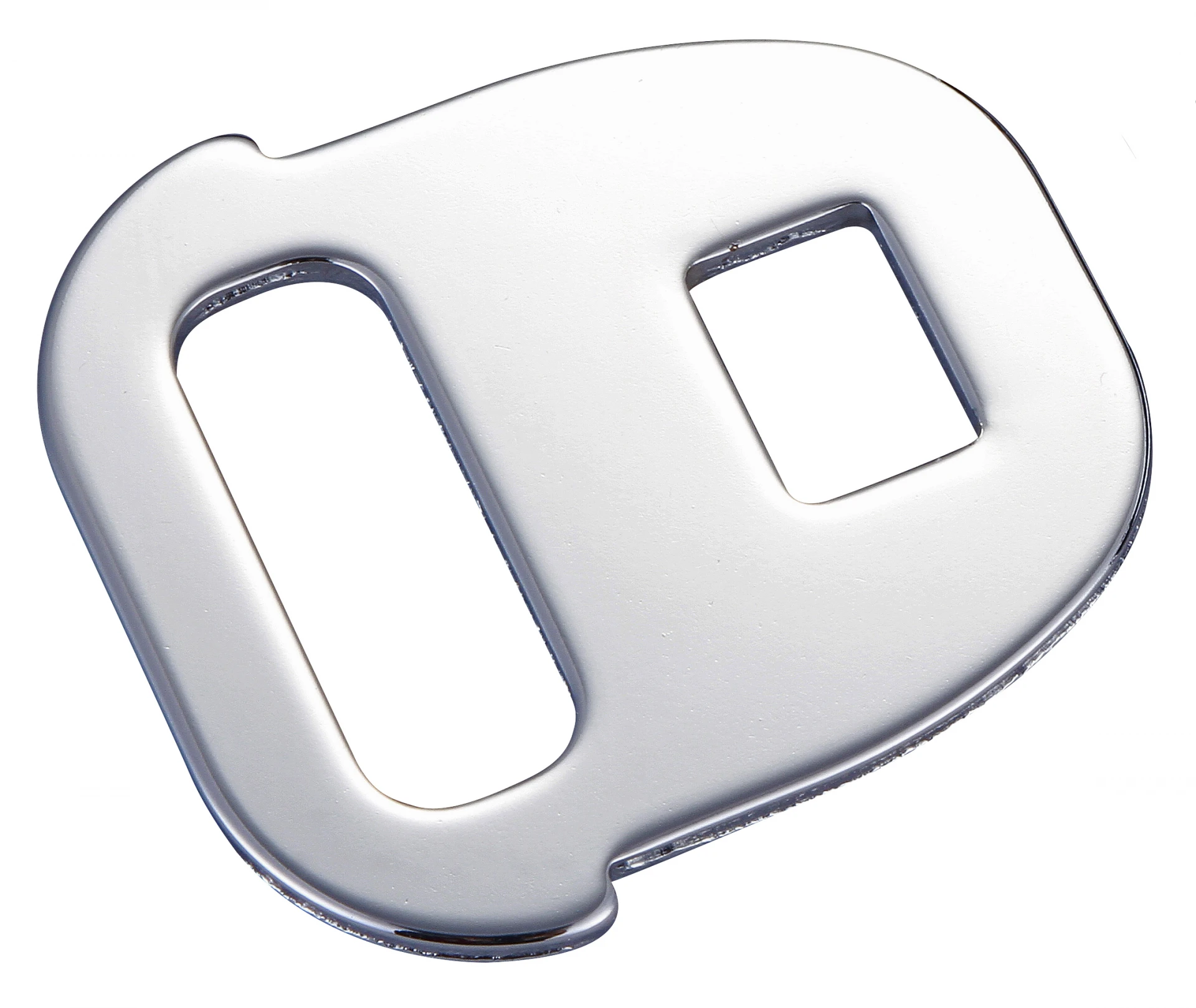

  CW-3002

  ✔Dimension : 49.3mm x 47mm
  ✔Material : S50C
  ✔Webbing hole diameter : 30mm

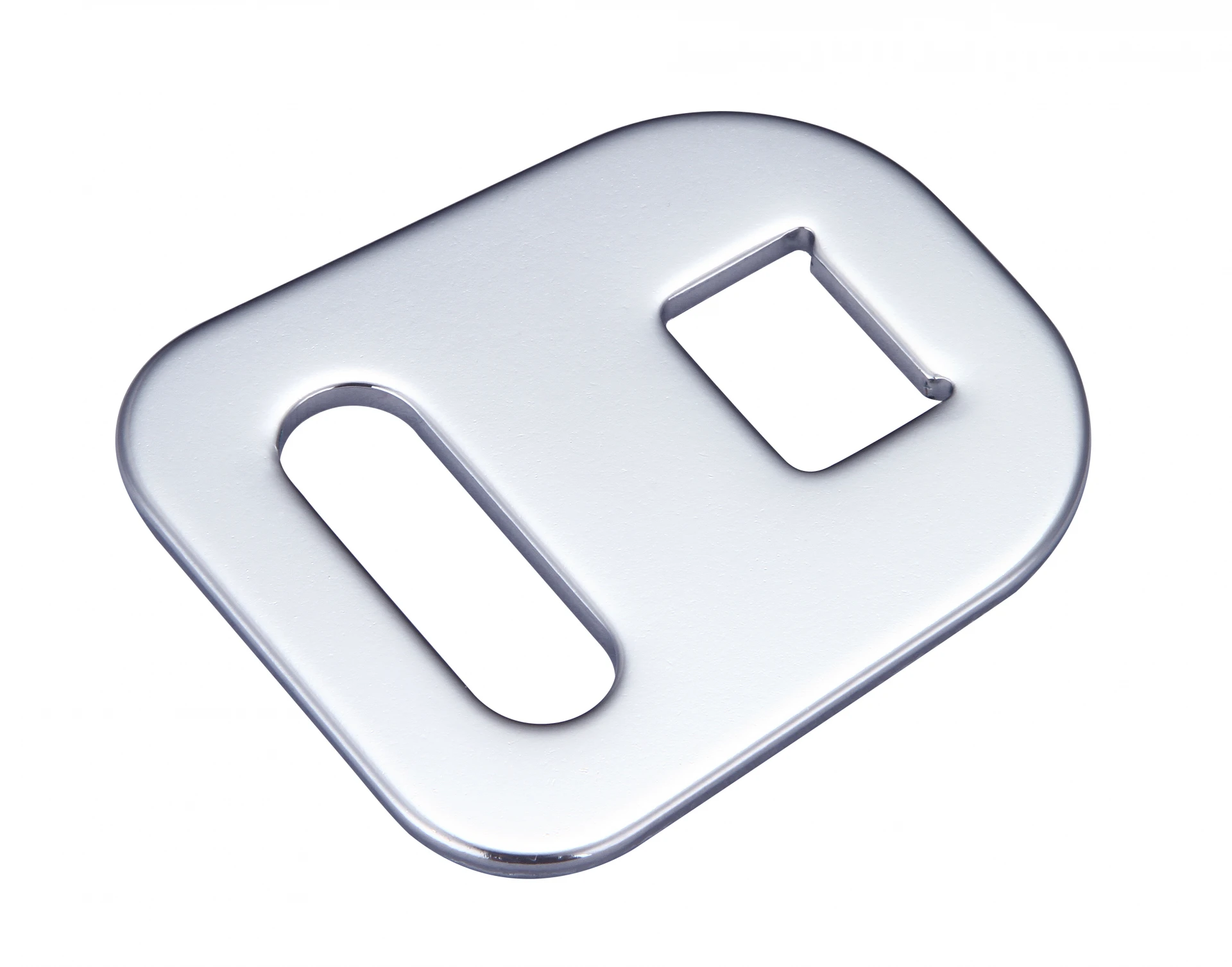

  CW-3003


✔Dimension : 49.5mm x 46.1mm
  ✔Material : S50C
  ✔Webbing hole diameter : 25.6mm



  CW-3004


  ✔Dimension : 49.2mm x 41mm
  ✔Material : S50C
  ✔Webbing hole diameter : 30mm

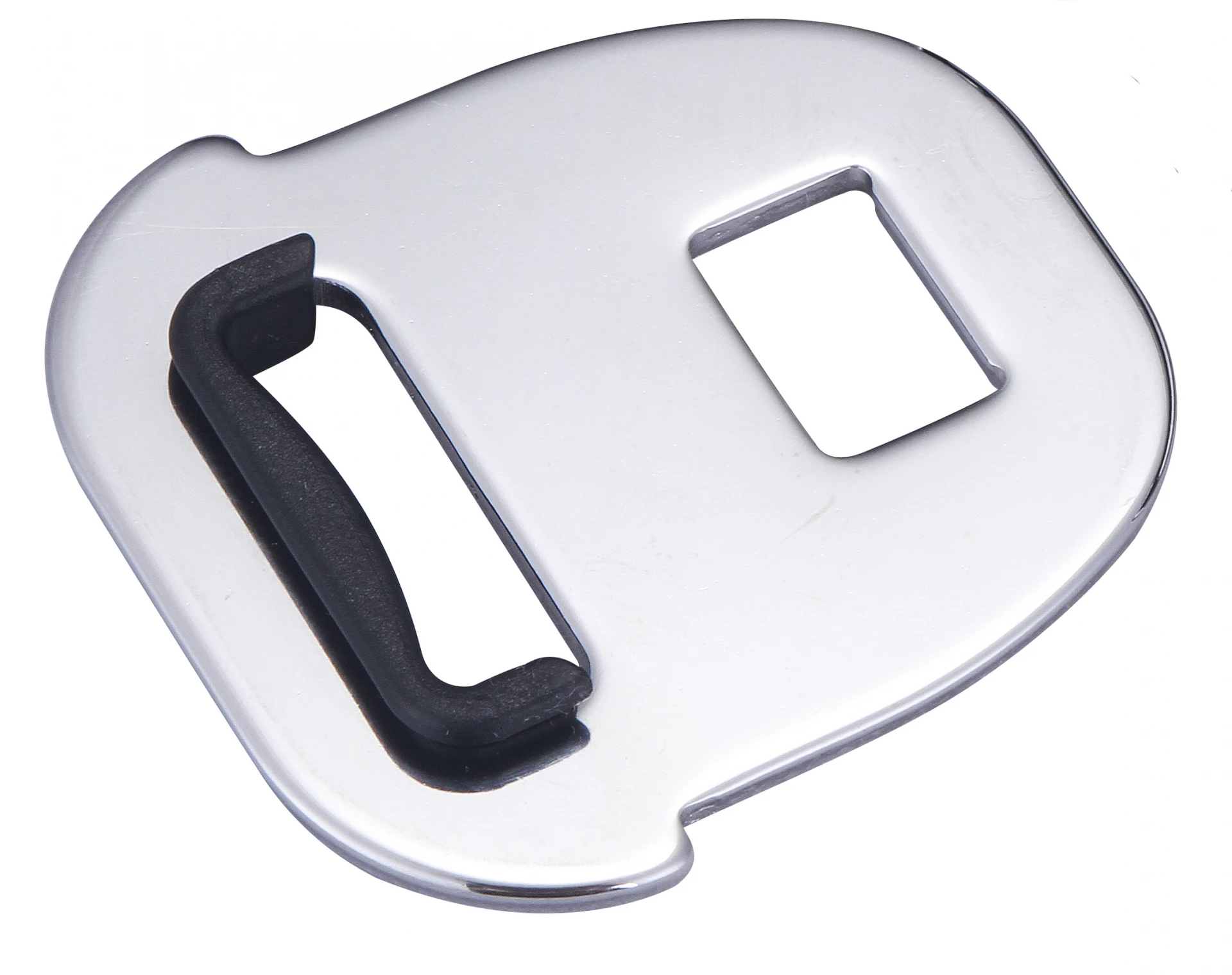

  CW-3005A

  ✔Dimension : 49.3mm x 47mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 22.7mm



  CW-3007

  ✔Dimension : 78mm x 78.6mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 61mm



  CW-3008

  ✔Dimension : 46mm x 53.4mm
  ✔Material : S50C + PU
  ✔Webbing hole diameter : 24.7mm

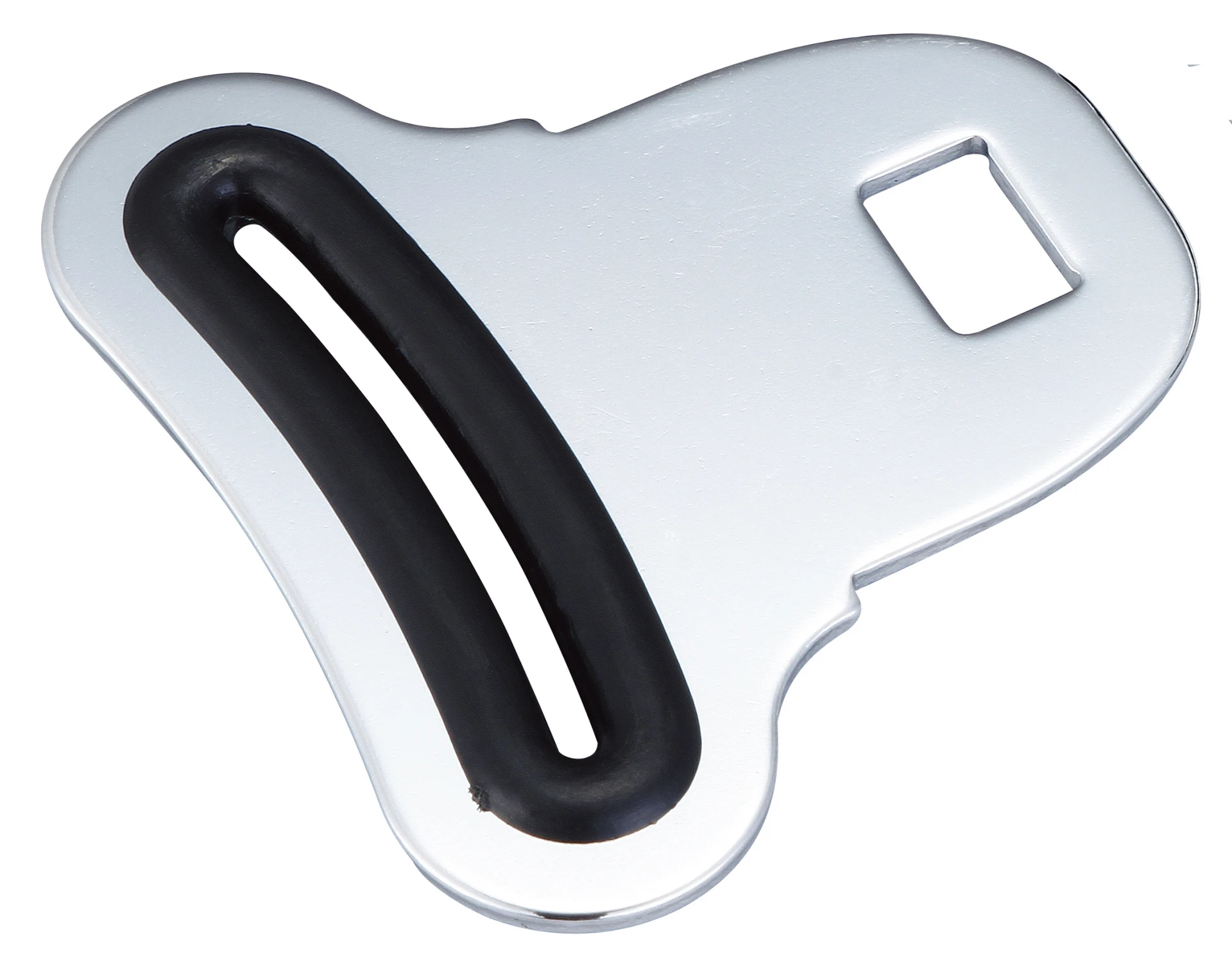

  CW-3111

  ✔Dimension : 70mm x 43.3mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 51mm



  CW-3211(Embossed rod diameter:7.2mm)
  CW-3221 (Embossed rod diameter:6.8mm)


  ✔Dimension : 70mm x 61.8mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 51mm



  CW-3212(Embossed rod diameter:7.2mm)
  CW-3222 (Embossed rod diameter:6.8mm)


  ✔Dimension : 70mm x 61.8mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 51mm
