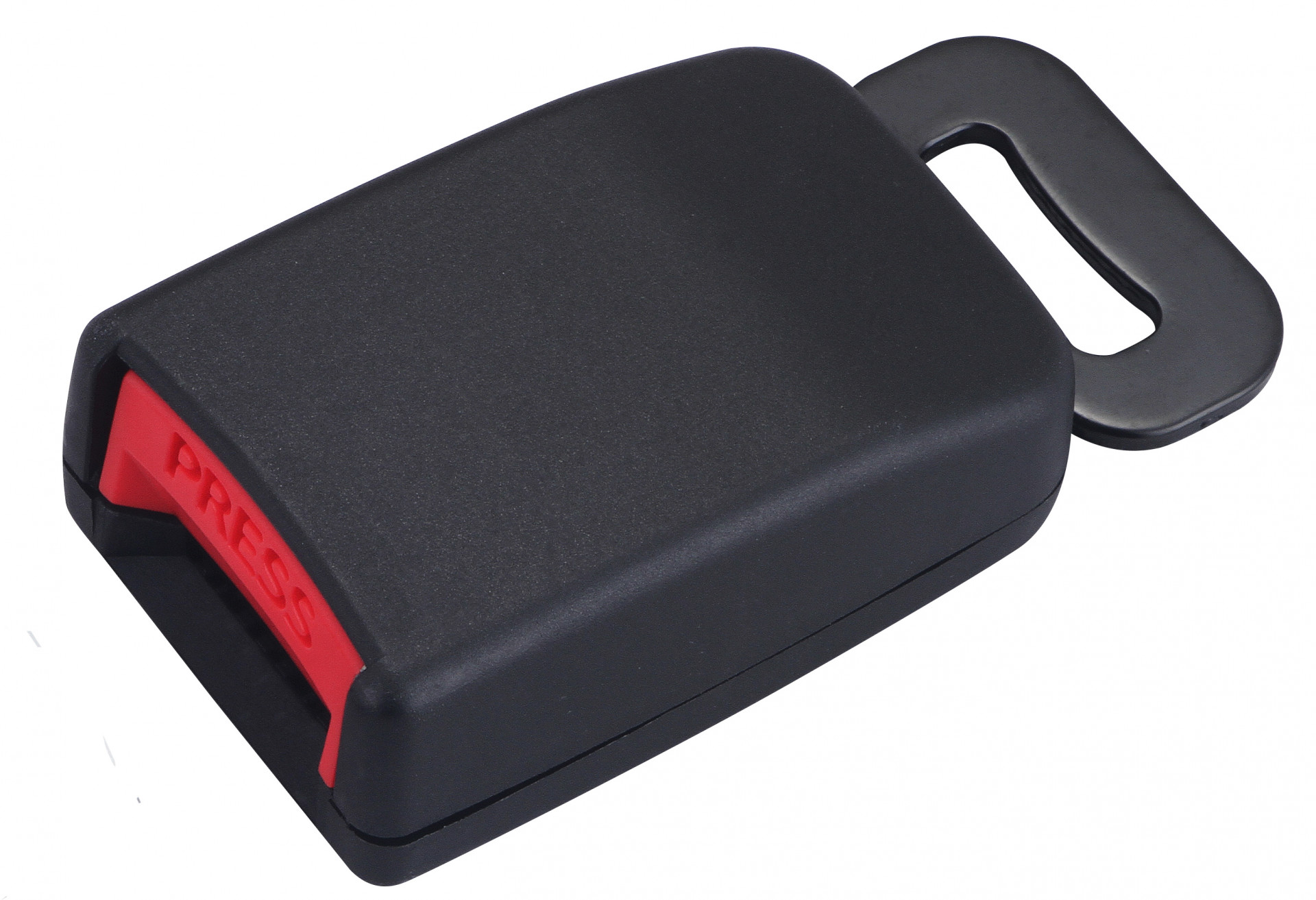

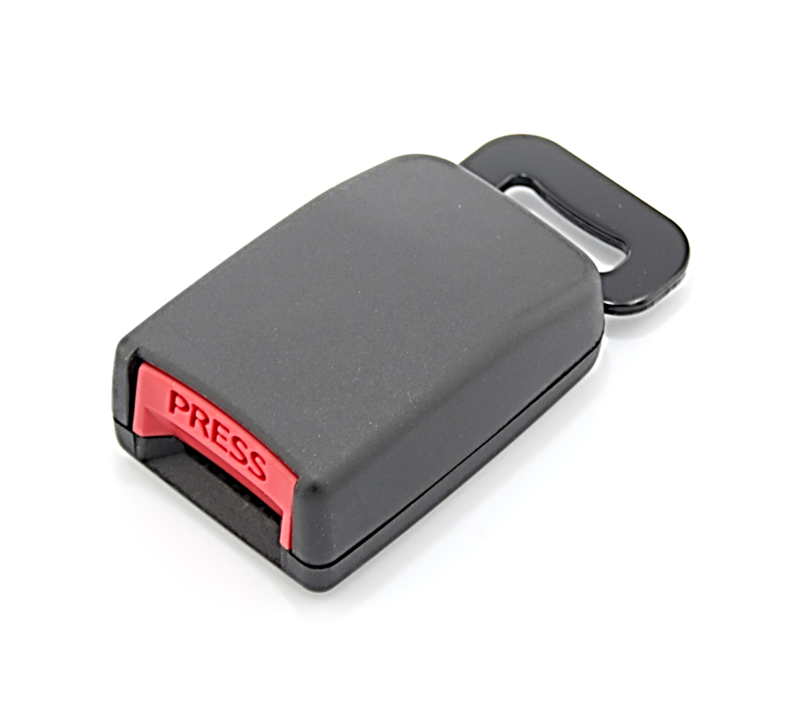

Seat Belt Buckle (CA-0200E)

Seat Belt Buckle (CA-0200E)
Product Information
✔ Buckle size in 100mm X 51.5mm. ✔ Webbing hole diameter : 26.9mm ✔ Material : Steel 4130 + Plastic
Available Model Colors
Available Match Colors
Available Model
CA-0200E
Available Match
CW-2001
CW-2122
CW-2002

About CA-0200E Seat Belt Buckle

The buckle of the CA-02 series is designed to be as simple as possible to keep it secure and comfortable.

It can be widely used in many occasions that require buckle.

● Assistive devices market

● Automotive market

● Use of fasteners with required strength

Female-Buckle Specification

CA-0200E  CA-0200E

  Buckle size in 100mm X 51.5mm.
   Webbing hole diameter : 26.9mm
   Material : Steel 4130 + Plastic

Male-Buckle Specification

  CW-2001


✔Dimension : 74mm X 71mm
  ✔Material : S50C + Plastic
  ✔Webbing hole diameter : 50mm



  CW-2122 (Embossed rod diameter:6.6mm)
  CW-2112 (Embossed rod diameter:7.2mm)

  ✔ Dimension : 70mm X 61.5mm
  ✔ Material : S50C + Plastic
  ✔ Webbing hole diameter : 51mm



  CW-2002

  ✔ Dimension : 60mm X 38mm
  ✔ Material : S50C + Plastic
  ✔ Webbing hole diameter : 25.6mm
